Industrial Fan & Infrared Electric Heaters

The industry standard Fireflo range of portable infrared space heaters and fan heaters is a fixture in many of the world’s leading hire fleets and industrial supply catalogues.  Designed using the very latest in heating and airflow technology the range includes infrared heaters, standard fan heaters and high volume machines suitable for ducting through multiple outlets or long distances including both single and three-phase.  All built to withstand industrial use and using the same high standard of materials and production methods this extensive range has something to suit every application.

Read more...

Fully serviceable equipment

Full spare parts availability

Full technical support

2-year warranty

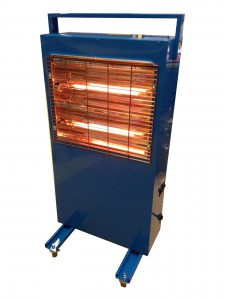

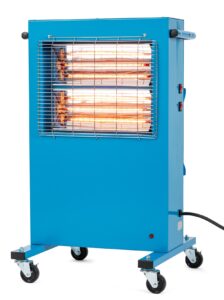

RG308/13

The fully portable RG308/13 provides localised heat for operatives or processes when traditional heat isn’t an option. Runs from a standard 230V 13A socket and features industry standard halogen bulbs, two heat settings, a reduced glow and a high quality build specification, as well as an anti tilt switch for added safety.

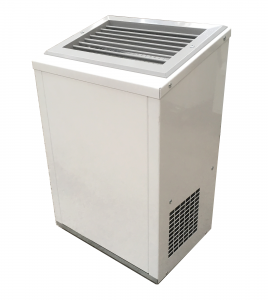

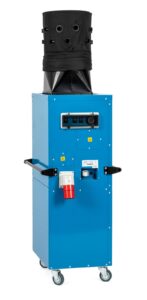

FFVH32

  • 2,300 M3/hr airflow
  • Fan Only/12kW/18kW settings
  • 3ph+N+E 32A appliance inlet
  • 50⁰C Temperature rise
  • Full Overtemp protection
  • Inline filter fitted as standard
  • Recessed control panel with lockable cover
  • Comes with remote and chassis mounted thermostat
  • Inflatable, lightweight, flame retardant distributor gives 360⁰ heating

All new high performance workshop heater FFVH32. High volume airflow, superb DeltaT and 360⁰ coverage from a single unit allows one unit to be used instead of many. Can also be used as part of a drying system to help reduce drying times in construction. The innovative new diffuser is lightweight, easy to store, can be easily washed and is made from fire retardant material that conforms to EN13501 B-S1-d0. Available from September 2019.

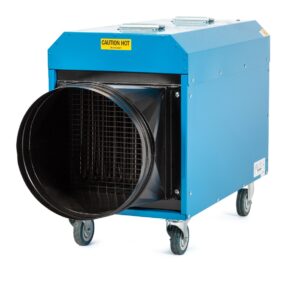

FFHT32

  • Heat capacity 18kW
  • 32A 400V 3ph supply
  • 1533m3/hr Airflow
  • 75C Temperature rise
  • Ductable to 10m
  • Two Heat Settings
  • Fast fume & odour free heat
  • Includes remote stat & square to round adaptor

The all new FFHT32 are a powerful industrial electric fan heaters capable of ducting long distances and delivering high volume airflows with a delta T of 75C, or even holding a room at 60C.  Built to withstand the knocks of day to day site use, the FFHT32 is ideal for use in factories, events and even as part of a pest control system.  Along with delivering an impressive heat output, the unit boasts a full range of safety features and accessories as standard including over temperature protection, remote & machine mounted thermostats, duct adaptor, locking 4 point castors, multiple heat settings, 5 pin 32A mains cable, as well as a 2 year warranty as standard.

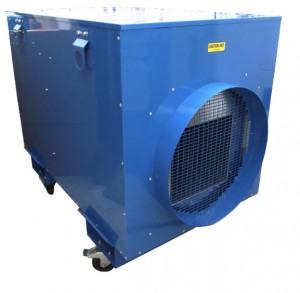

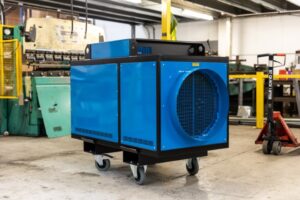

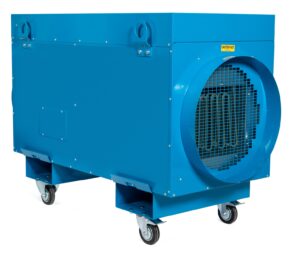

FF42

  • 42kW Heater
  • 63A 400V 3ph supply
  • 4000m3/hr Airflow
  • Adjustable Thermostat
  • Can duct 10M

The most powerful 63A heater available. Designed and built for industrial use the FF42 features variable heat output, 24V control circuit for safety, remote thermostat socket, spigot, overtemperature protection and an auto run on as standard.

Learn more about Ducted Fan Heaters

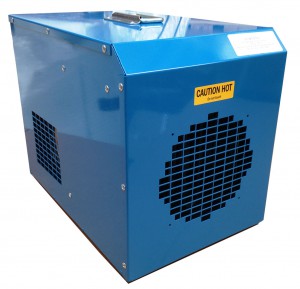

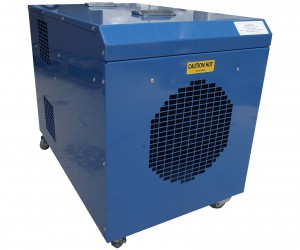

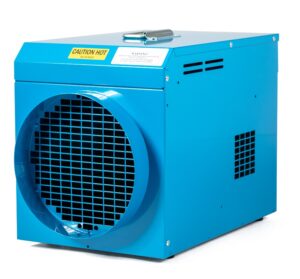

FF13

  • Heat capacity 30,708 BTU
  • 16A 400v 3ph supply
  • 830m3/hr Airflow
  • Adjustable Thermostat
  • Can duct 10M

The FF13. A powerful 16A 3 phase heater designed to withstand the rigours of regular site use with features including an adjustable thermostat and over temperature protection as standard while the optional single or double spigot outlets can provide warm air either along 10M of ducting or to two separate area’s. A clean, odourless and fume free alternative to gas and diesel heaters.

Learn more about Ducted Heaters

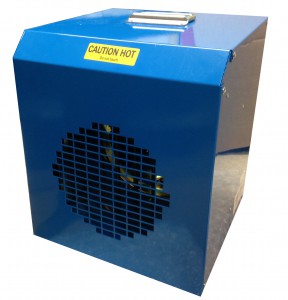

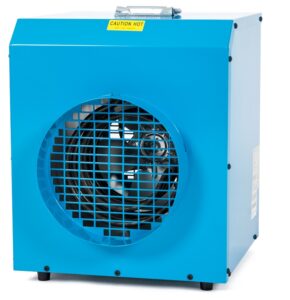

FF3

  • 3kW (nominal) Industrial Heater
  • Available in 115v and 230v
  • Adjustable thermostat
  • Built for industrial use
  • Can duct 2M

The FF3. Designed and built to withstand the rigours of regular site use. Features include an adjustable thermostat and over temperature protection as standard while the optional spigot allows the user to fit up to 2m of ducting.

RG308/16

  • 110V 16A supply
  • Quartz halogen bulbs
  • Lockable castors

The fully portable RG308/16 provides localised heat for operatives or processes when traditional heat isn’t an option. Runs from a standard 110V 16A supply and features industry standard halogen bulbs, two heat settings, a reduced glow and a high quality build specification.

Learn more about 110V Heaters

RG308/32

  • 110V 32A supply
  • 3kW Infra red heater
  • Quartz halogen Bulbs
  • Lockable castors

The fully portable RG308/32 provides localised heat for operatives or processes when traditional heat isn’t an option. Runs from a standard 110V 32A supply and features industry standard halogen bulbs, two heat settings, a reduced glow and a high quality build specification, as well as an anti tilt switch for added safety.

Learn more about 110V Heaters

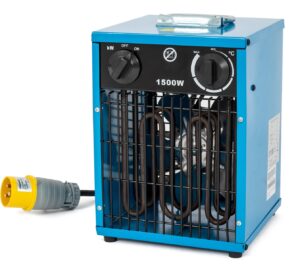

IFH2 16A 110v Industrial Fan Heater

  • 1.5kW Industrial Heater
  • Plug type 16A 110v
  • Built for industrial use
  • Adjustable thermostat

The lightweight yet durable IFH2 Electric Fan Heater delivers 1.5 kW of heat, and are ideal for areas such as building sites and temporary buildings where only a 16A 110v supply is available.

Learn more about 110V Heaters

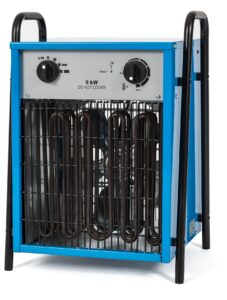

IFH9 Industrial Electric Fan Heater

  • Supply 400v 3phase 50hz
  • Settings Fan Only/4.5kW/9kW
  • Heater Dimensions 355x300x490mm
  • Supplied with 16A 400V Mains Cable

The  IFH9 offers 3-phase electric fan heating effectively and safely provides up to 9kW of heat output for numerous small & medium sized commercial and industrial premises.  A rugged steel casing, with tough enamel finish ensures adequate protection against knocks & bumps.  The thermostatically controlled, adjustable heat output makes sure the desired temperature is quickly achieved.

Learn more about 3 Phase Heaters

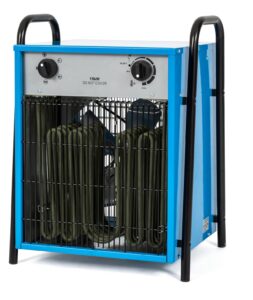

IFH15 Industrial Electric Fan Heater

  • Supply 400v 3phase 50hz
  • Settings Fan Only/5kW/10kW/15kW
  • Heater Dimensions 410x360x550mm
  • Supplied with 32A 400V Mains Cable

The new IFH15 offers 3-phase electric fan heating effectively and safely provides up to 15kW of heat output for numerous small & medium sized commercial and industrial premises.  A rugged steel casing, with tough enamel finish ensures adequate protection against knocks & bumps.  The thermostatically controlled, adjustable heat output makes sure the desired temperature is quickly achieved.

Learn more about 3 Phase Heaters

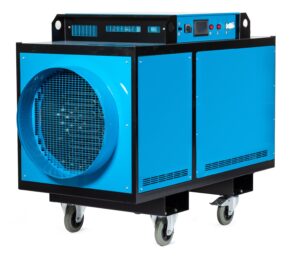

FF80 80kW INDUSTRIAL HEATER

  • 80kW of warm fume free air
  • 125A 400V 3ph supply
  • Up to 6000 M3/hr airflow
  • Touch screen control

The latest addition to our Mighty Heat range is the FF80, a category leading 80kW heater capable of delivering massive volumes of warm air.  Manufactured here in the UK, the FF80 is designed and built to withstand the rigors associated with industrial use. With a powerful backward curved impeller housed in an all steel chassis, the FF80 is an industrial heater that delivers 80kW of dry, safe, fume free heat at up to 6000m 3 /hr against a pressure drop of 600 Pa. With this sort of performance the FF80 is capable of ducting warm air great distances, allowing it to deliver heat whilst being positioned remotely.


Additional product information

Portable Industrial Fan Heaters and Infra Red Heaters

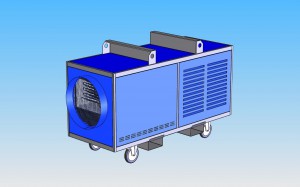

As the UK’s premiere electric heater manufacturers we offer an extensive range of industrial electric heaters. With a long, proud history spanning over 30 year’s as heating equipment manufacturers we’ve been able to design, develop and refine our Fireflo industrial fan heaters so that there’s something to suit everyone; from standard 230V 3kW and 110V 3kw fan heaters to very large electric heaters such as our FF110, which delivers a massive 110kW of heat.

Our full range of industrial space heaters, portable electric heaters and industrial fan heaters includes a dedicated range of event heaters, designed specifically for use in the events industry, powerful fan heaters that can be ducted long distances and models for those with a smaller budget. For full details and specifications on the complete Fireflo range, including the RG infrared heaters, please see here.

What are Portable Industrial Fan Heaters and Infra Red Heaters?

Portable heaters, also known as space heaters, are among the most commonly used tools in the world, there are literally hundreds of thousands of them in use. They are used for both process and comfort heating and suit a wide variety of applications in the industrial, commercial, agricultural and horticultural sectors.

Portable electric heaters are the handiest, most versatile and safest way of heating, drying and thawing. There are no exhaust gasses, vapours, odours or naked flames and therefore can be used in many applications where gas or diesel can’t. All you need is an electrical supply and you’re ready to go so they‘re therefore ideally suited to almost anywhere heat is needed including marquees, construction projects, exhibition halls, warehousing, switching stations, hospitals and temporary accommodation.

Where can industrial fan heaters and infrared heaters be used?

Thanks to their versatility and safety, portable electric heaters, industrial fan heaters and infrared heaters can be used just about anywhere:

For more sensitive places such as sugar factories, refineries or explosive environments then ATEX rated portable heaters may be available, but these are highly specialised and best left to experts to specify.

What are the benefits or advantages of portable electric heaters and industrial fan heaters?

As mentioned above, industrial fan heaters are the safest and most versatile type of portable heating. There are none of the noxious fumes or smells associated with gas and diesel heaters, they’re incredibly easy to install (all you need is a suitable supply), don’t require any extra ventilation and you don’t have to worry about keeping the fuel tank topped up.

Infrared heaters only heat solid objects, they don’t heat the air so are incredibly useful when localised or ‘spot’ heating is required. Imagine you have a huge warehouse with just one or two members of staff in there, heating the entire building would be incredibly expensive but with portable infrared heaters positioned where the staff are working you can keep them warm without worrying about the rest of the building. Similarly, if you have roller shutter doors that need to be kept open you can keep staff warm using infrared heaters instead of using heating and air curtains.

How to calculating heat requirements

1) Establish the required temperature rise in ºC.

2) Calculate the volume of the space in cubic meters (LxWxH).

3) Take in account the spaces type of insulation

Well insulated k=1.2

Average k=2.2

Badly insulated k=3.0

Hardly any at all k=4.0

The amount of heat required = rise in ºC x Volume in m³ x k x 4= Btu/h. Divide the answer by 3412 for kW’s.

What sets Fireflo Apart?

• Massive heat outputs and versatility. You might not need 100+kW regularly but a high volume 18kW unit that can be ducted or even heat four separate area’s is unique but very, very usable.

Ductable. Powerful air delivery systems mean that most Fireflo heaters can deliver heat via 3-30m of ducting.

• Robust build and easy to use controls make Fireflo more longer lasting and user-friendly.

• More ‘Health & Safety’ friendly than diesel or gas.

• The most competitive prices around.

• Our 2 year warranty.
